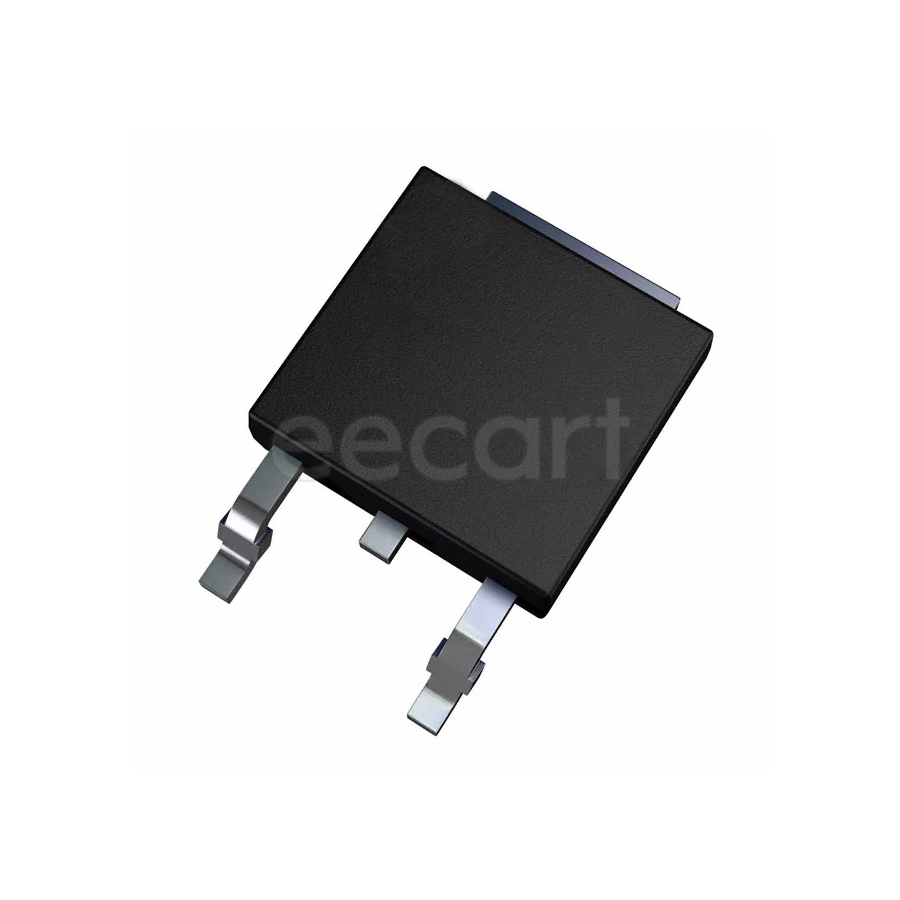

MJD41CTF
Manufacturer:
On Semiconductor
Mfr.Part #:
MJD41CTF
Datasheet:
Description:
BJTs TO-252AA SMD/SMT NPN 1.75 W Collector Base Voltage (VCBO):100 V Collector Emitter Voltage (VCEO):100 V Emitter Base Voltage (VEBO):5 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 100 V |
| Length | 6.6 mm |
| Width | 6.1 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 3 |
| Height | 2.3 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | NPN |
| Weight | 0.2604 g |
| Frequency | 3 MHz |
| Number of Elements | 1 |
| Current Rating | 6 A |
| Lifecycle Status | EOL (Last Updated: 5 months ago) |
| Max Power Dissipation | 1.75 W |
| Power Dissipation | 1.75 W |
| Max Collector Current | 6 A |
| Collector Emitter Breakdown Voltage | 100 V |
| Transition Frequency | 3 MHz |
| Element Configuration | Single |
| Collector Emitter Voltage (VCEO) | 100 V |
| Max Breakdown Voltage | 100 V |
| Gain Bandwidth Product | 3 MHz |
| Collector Base Voltage (VCBO) | 100 V |
| Collector Emitter Saturation Voltage | 1.5 V |
| Emitter Base Voltage (VEBO) | 5 V |
| hFE Min | 15 |
| Manufacturer Lifecycle Status | LAST SHIPMENTS (Last Updated: 5 months ago) |
| Max Cutoff Collector Current | 10 µA |
| Transistor Type | NPN |
